面向航空高精度管材制備的冷變形-退火熱處理聯動工藝調控TC4鈦合金微觀缺陷及綜合力學性能優化研究

TC4鈦合金的名義成分為Ti-6Al-4V，是1954年由美國研制的一種α＋β型雙相鈦合金，兼具α型及β型鈦合金的優點，具有高強度、耐腐蝕、耐高溫、抗氧化等特點，是全球應用最為廣泛的鈦合金［1-3］ 。尤其在航空航天方面，如飛機機身所用的鈦合金，TC4占比可達70％～90％。

TC4鈦合金組織中的α?Ti為密排六方結構，滑移系較少，冷變形相對困難，加上TC4合金的高比強度，導致該合金的冷變形能力較差，在冷軋制管過程中易發生表面開裂，極大增加了TC4鈦合金無縫管冷軋制備的難度。目前國內TC4管材通常以熱擠壓或斜軋穿孔等方法制備管坯［4-6］ ，后續多采用溫軋方式生產TC4鈦合金管材制品［7］ ，但溫軋需在軋管機上加裝感應加熱裝置，這種加工設備結構復雜、工藝繁瑣、生產成本高。冷軋適合制備表面質量和尺寸精度要求高的管材，能得到較好的成形效果和加工率，但對材料的塑性有較高的要求。李凱玥［8］研究了冷軋工藝對TC4鈦合金薄壁管材組織性能的影響，指出冷軋道次和道次間變形量對TC4軋制管材的表面質量和力學性能有顯著影響。王國迪等［9］研究表明，TC4鈦合金冷變形量會直接影響合金的微觀組織和退火再結晶行為。目前國內外針對TC4鈦合金無縫管的研究主要以熱變形為主，而冷變形工藝研究則鮮有報道。本文以熱擠壓φ86ｍｍ×5ｍｍ規格TC4管材為冷軋管坯，研究了道次不同冷變形量和退火溫度對TC4管坯微觀組織、織構演變和力學性能影響規律，旨在為高精度鈦管冷軋工業化提供重要支撐。

1、試驗材料與方法

試驗選用3t的Φ750mmTC4鈦合金鑄錠,其化學成分見表1。采用自由鍛方式在45MN鍛機上將TC4鑄錠分別鍛成Φ230mm棒坯,棒坯經過臥式擠壓機(45MN)在950℃熱擠壓成?90mmx9mm擠壓管,經扒皮、鏜孔等處理得到?86mmx5mm冷軋用管坯,管坯在立式真空爐(VCQV-480)中于800℃退火2h后,再依次經過兩輥(LG90、LG60)和三輥(LD60)軋機三道次冷軋成TC4成品管,冷軋變形量依次為29%、44%和22%,分別對應Q值(相對減壁量與相對減徑量的比值)為1.8、1.0和2.5。每道次軋制完成后的鈦管先進行退火(退火溫度:800℃,保溫時間:2h)后，再開展下一道次冷軋，直到軋至成No.3鈦管。對道次冷變形的No.1~No.3TC4管坯取樣并分別進行750~850℃的退火熱處理試驗，如表2所示，退火管隨爐冷卻。

表1 TC4鈦合金鑄錠的化學成分(質量分?jǐn)?shù)，%)

Table 1 Chemical composition of the TC4 titanium alloy ingot(mass fraction,%)

表2 TC4鈦合金無縫管的工藝參數

Table 2 Processing parameters of the TC4 titanium alloy seamless tubes

冷軋及退火管沿軸向取10mm×10mm×10mm金相試樣,先用180~800目砂紙打磨,再進行機械拋光10min制備成電子背散射衍射(EBSD)樣品,拋光液為SiO₂懸濁液(粒度40nm)。通過7900F型掃描電鏡觀察管材徑向(RD)-軸向(AD)面的微觀組織及織構。采用Kroll試劑(4%HF和20%HNO3的水溶液)對試樣進行腐蝕,并用光學顯微鏡(Axio Imager M2m)觀察試樣微觀組織。采用Instron AUTO-T型萬能試驗機測試管材軸向室溫拉伸性能。

2、試驗結果與討論

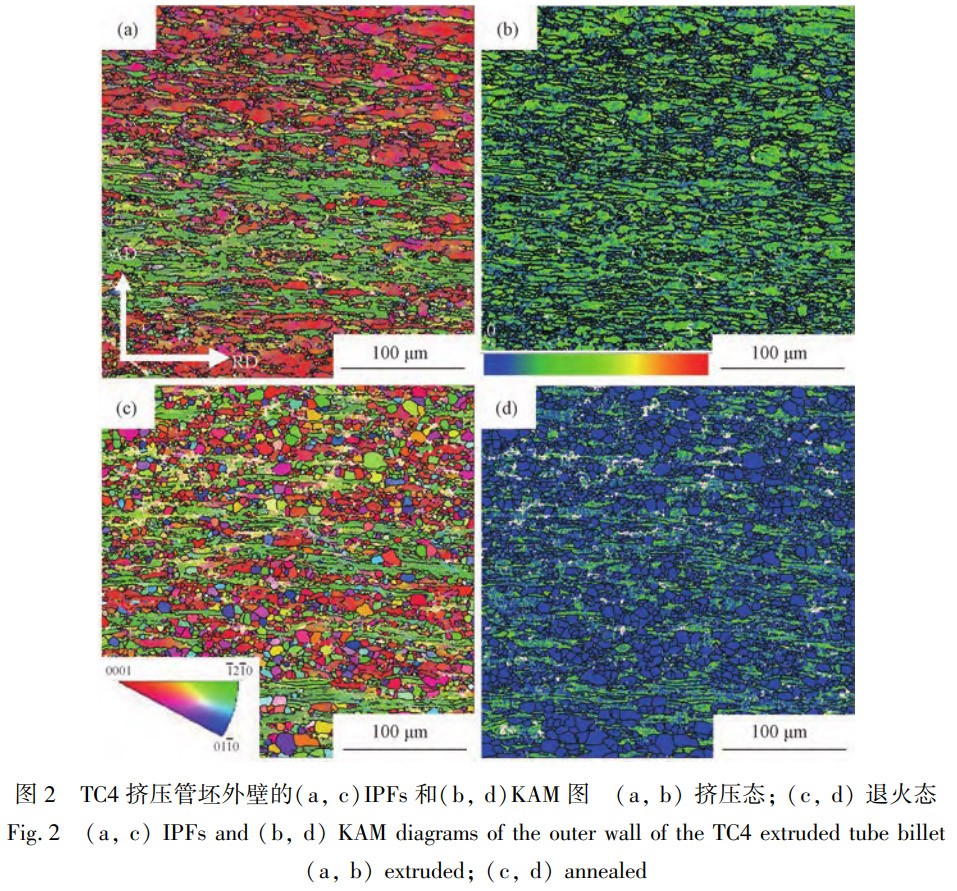

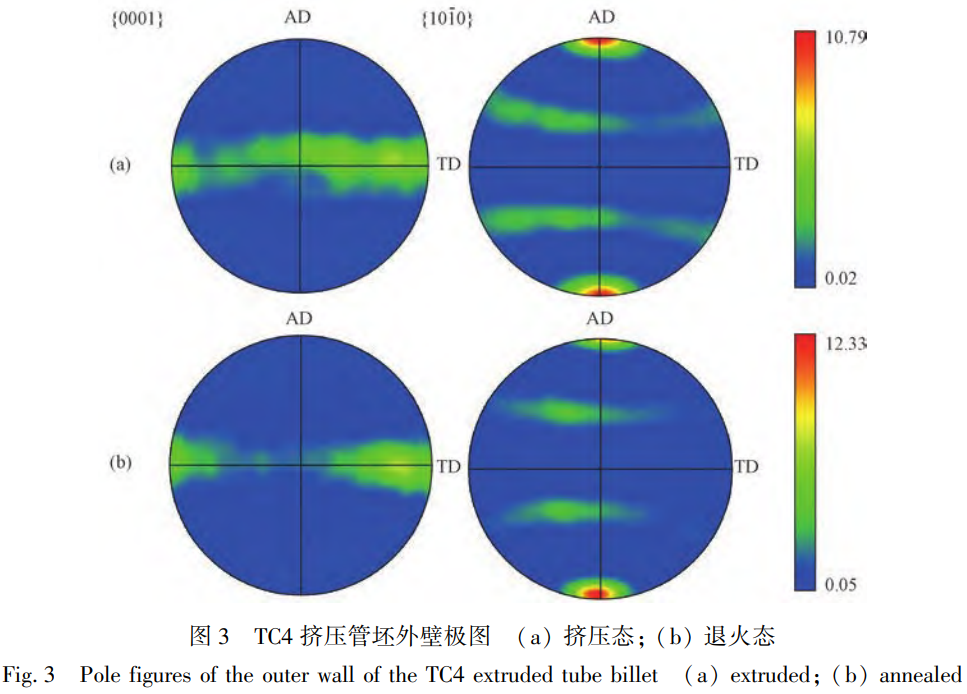

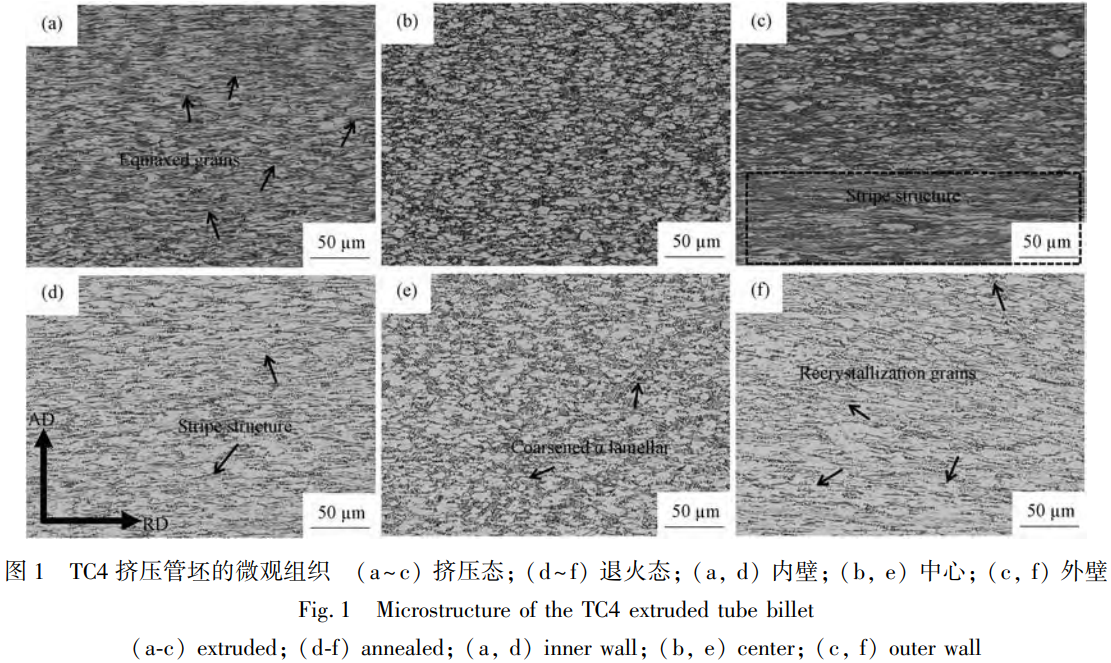

2.1擠壓管坯微觀組織

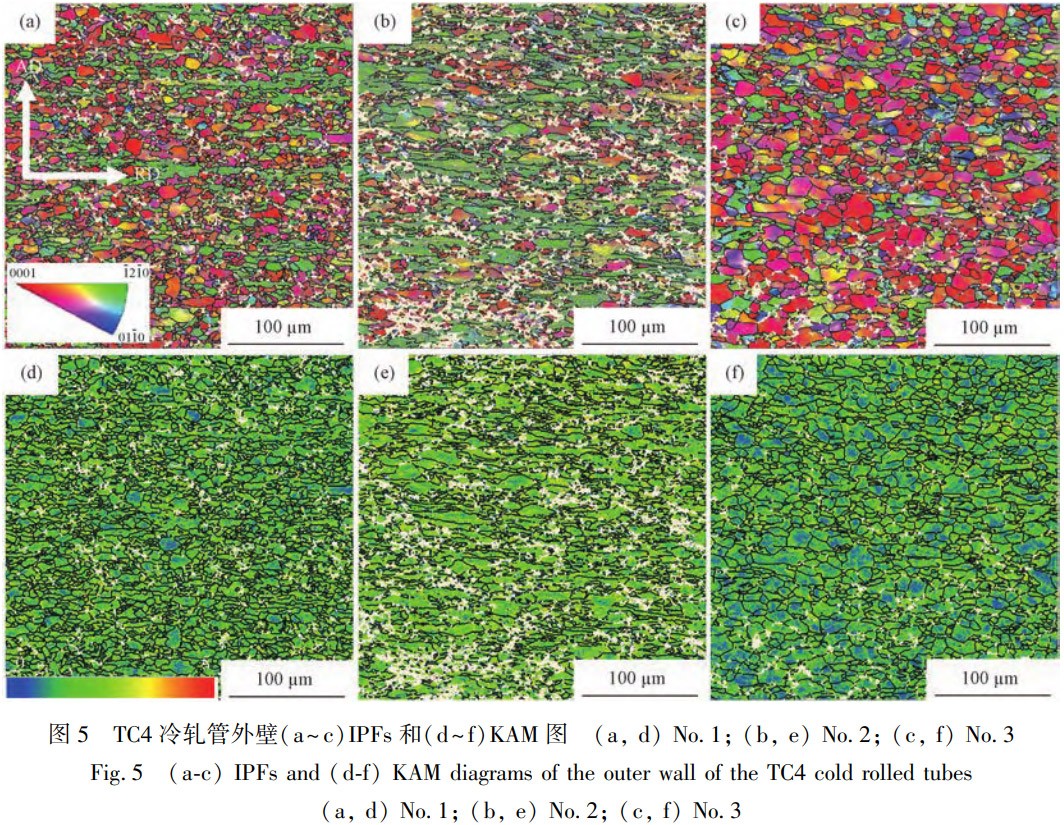

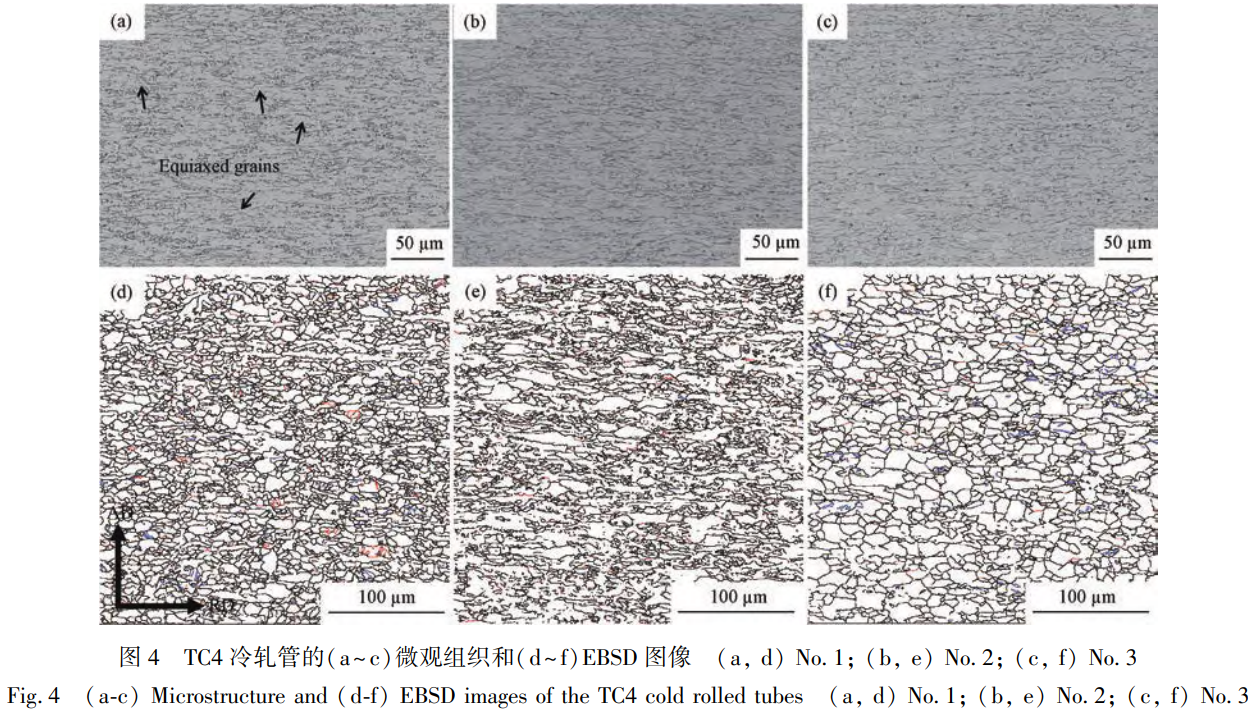

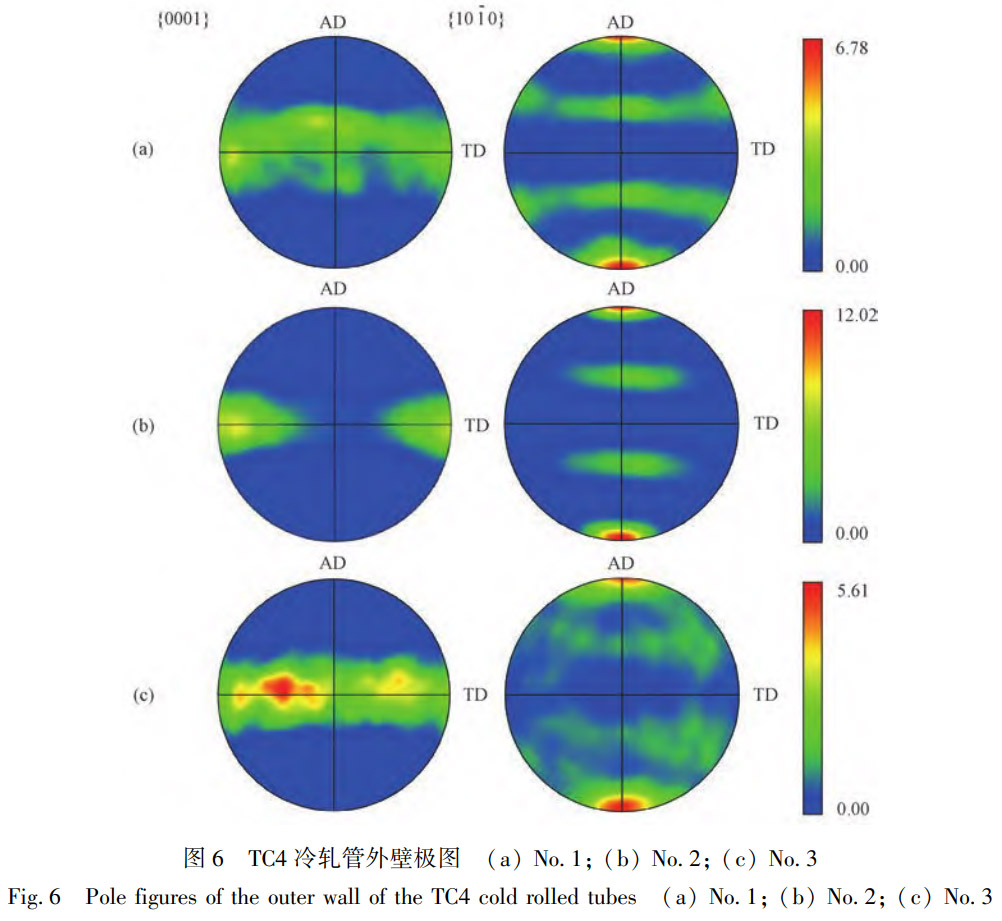

2.2冷軋對組織織構的影響

表3 TC4冷軋管中孿晶界占比

Table 3 Twin boundary proportion in the TC4 cold rolled tubes

表4 TC4冷軋管不同滑移系的施密特因子

Table 4 Schmid factors of different slip systems in the TC4 cold rolled tubes

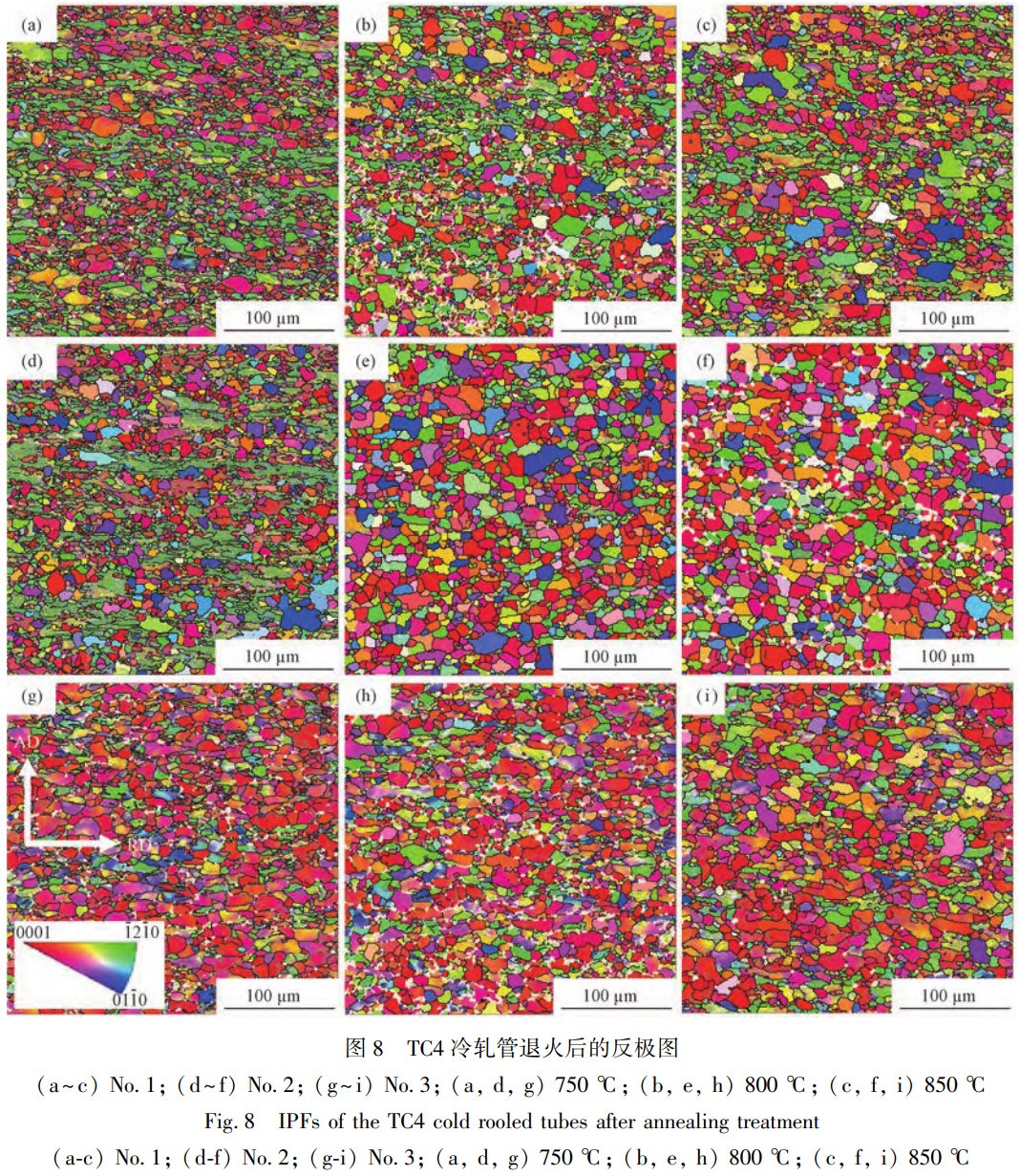

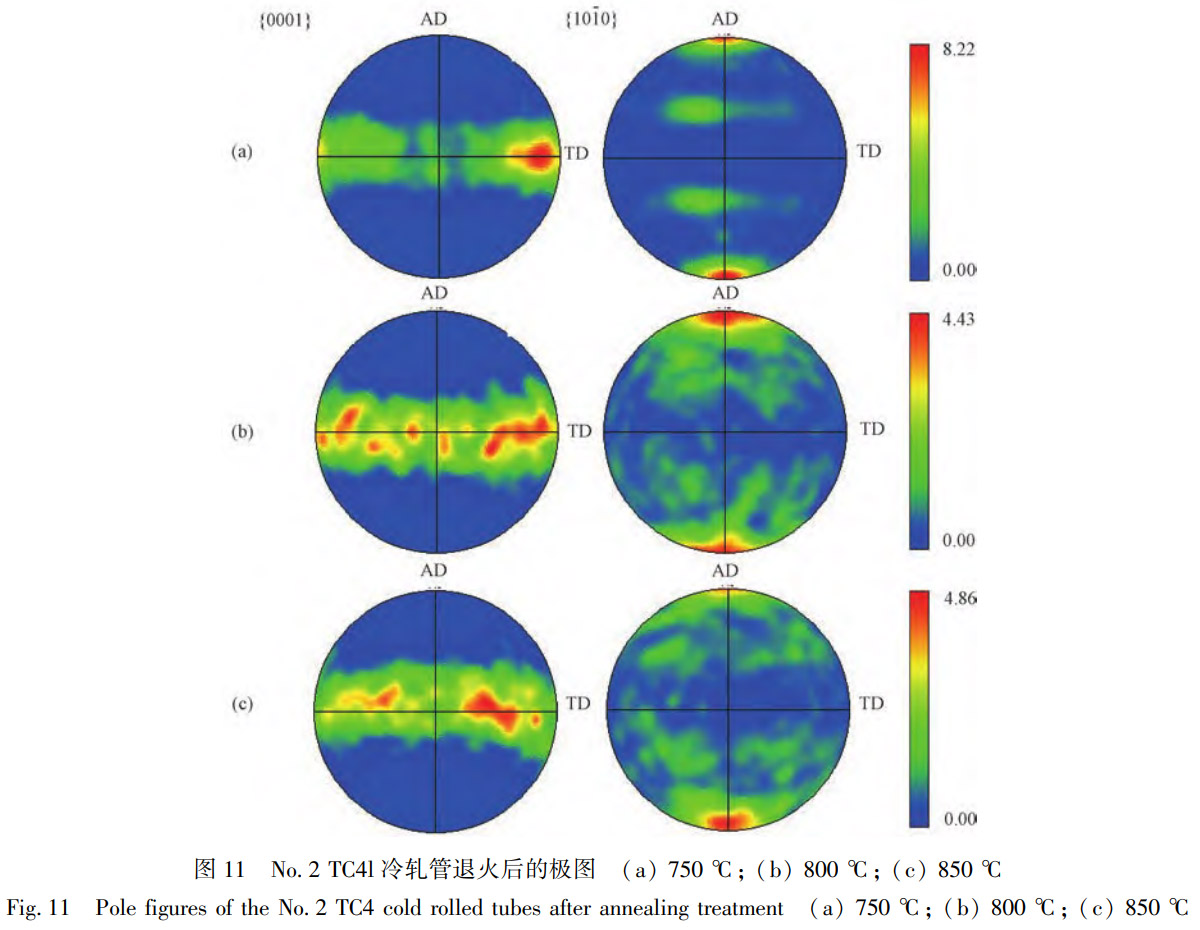

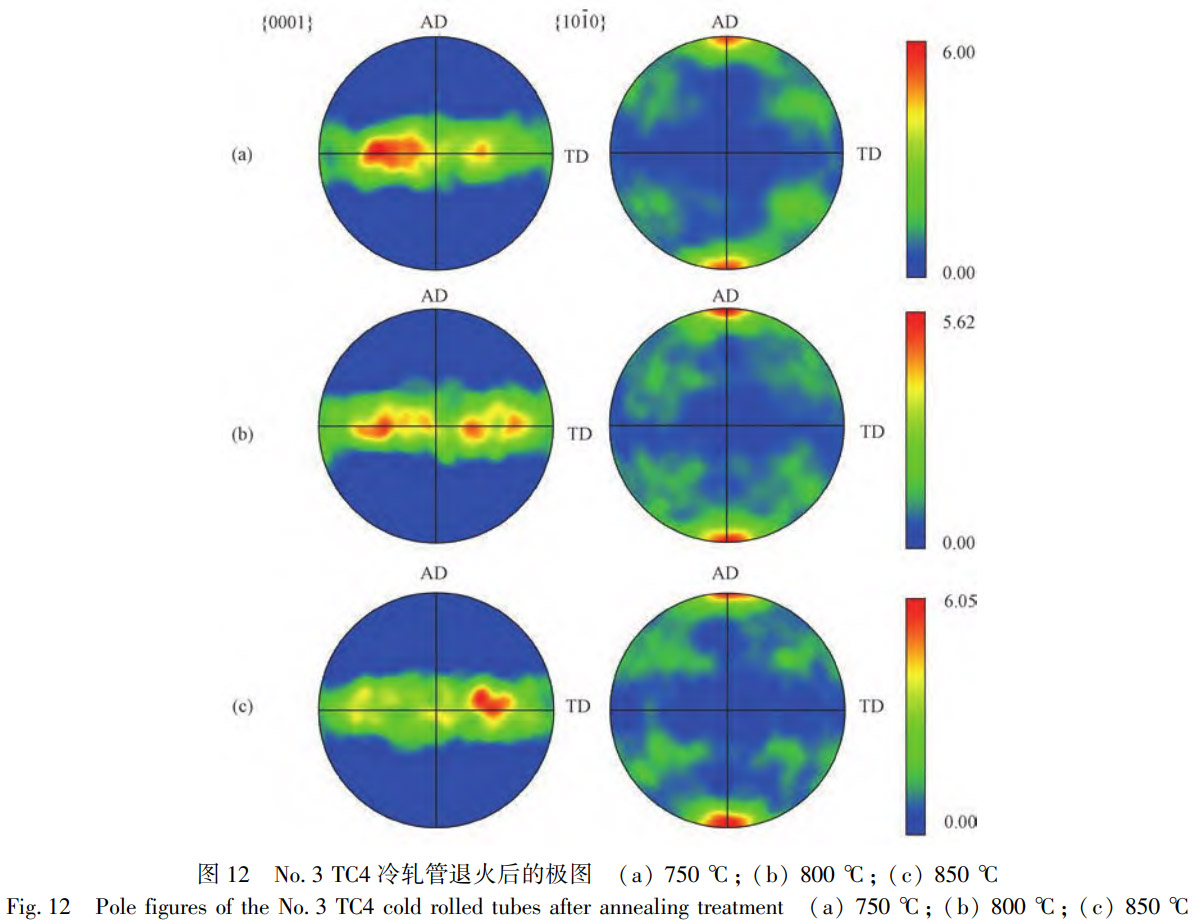

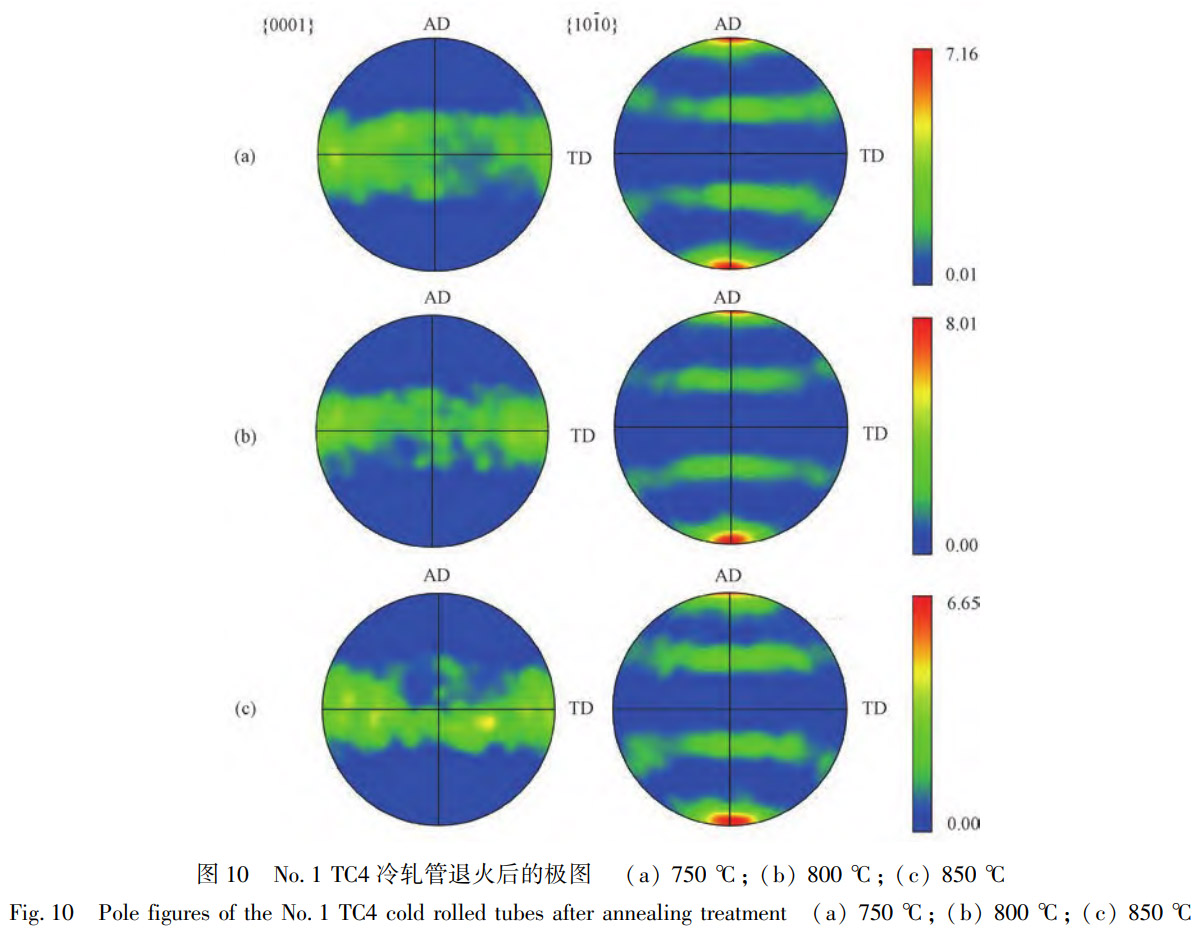

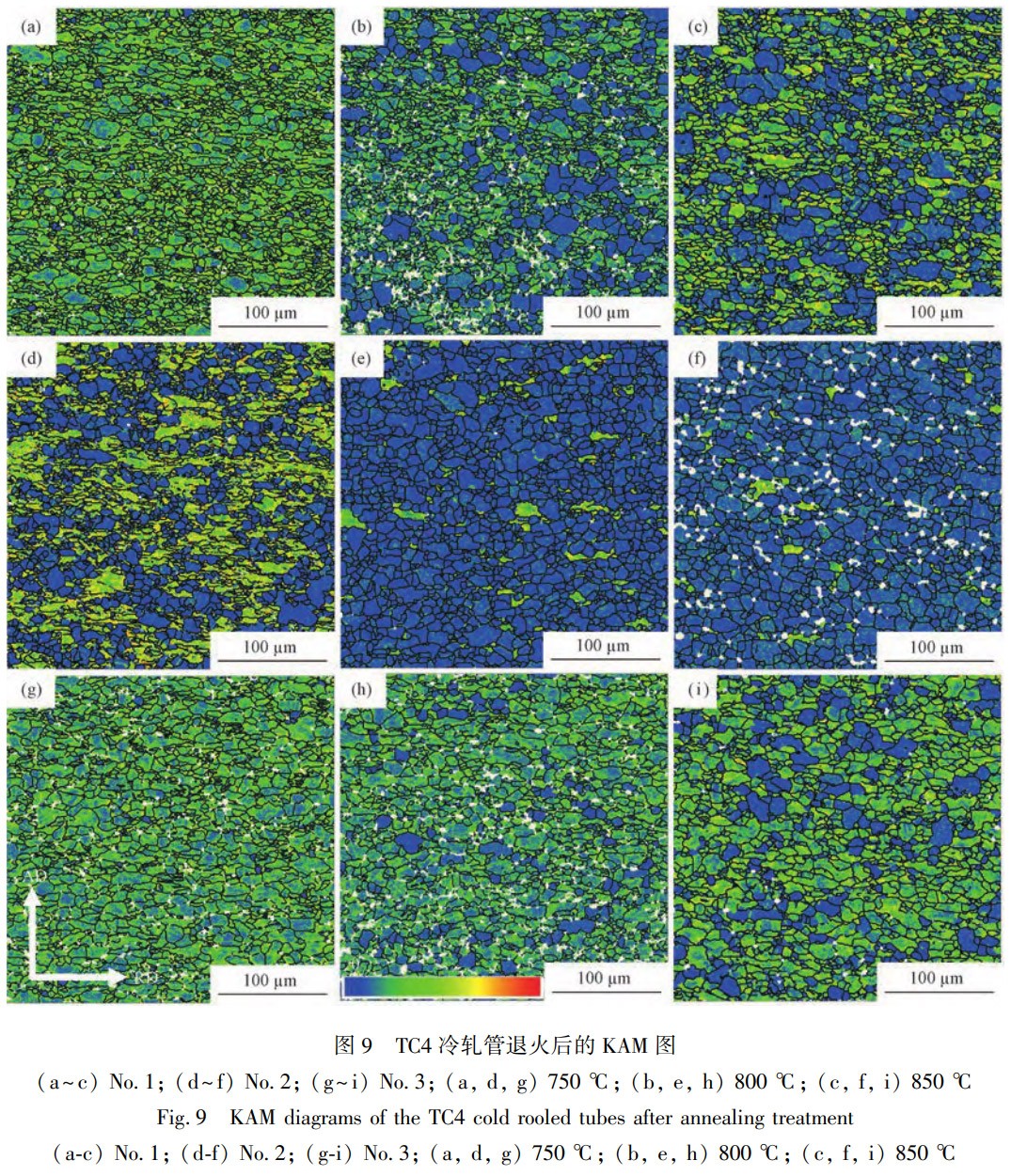

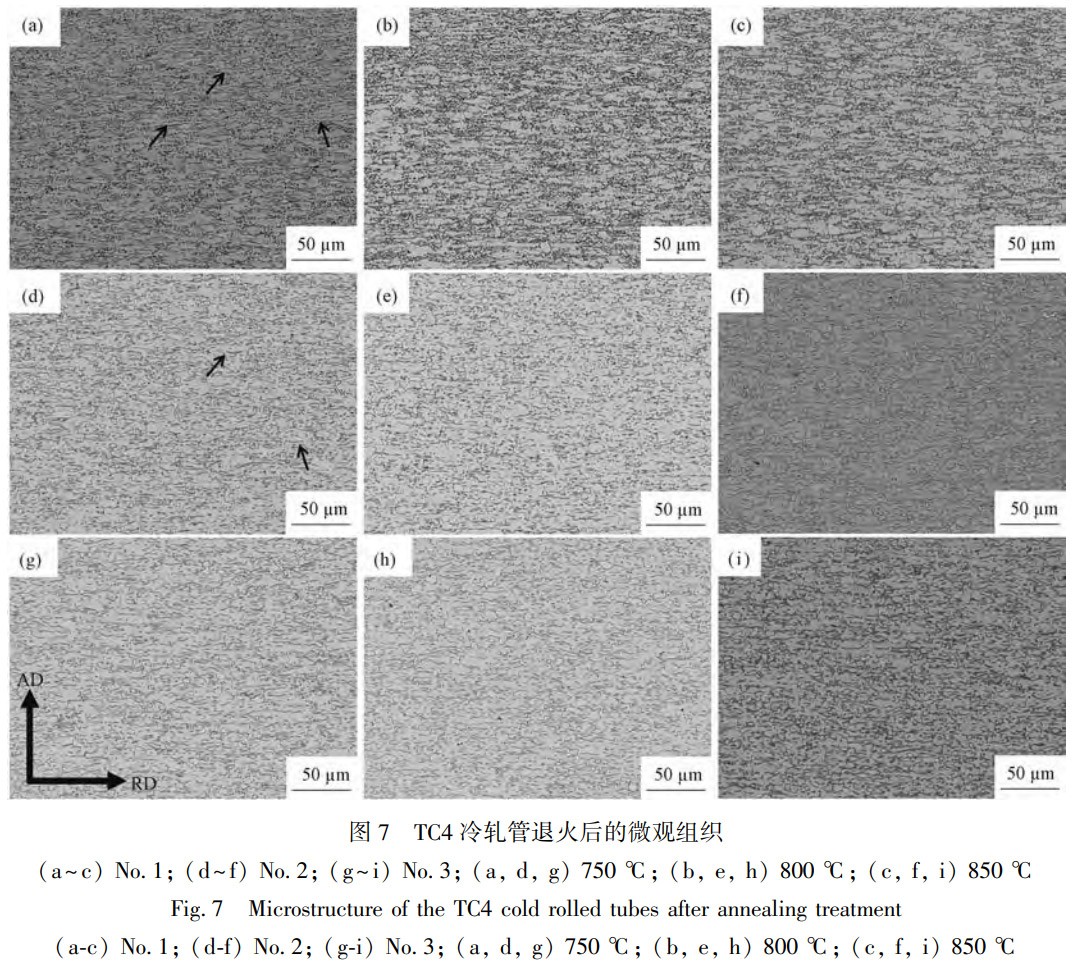

2.3退火過程再結晶與織構演變

表5不同退火溫度下TC4冷軋管材的晶粒各取向及再結晶占比

Table 5 Grain orientation and recrystallization grain proportion of the TC4 cold rolled tubes after annealing at different temperatures

表6 不同退火溫度下TC4冷軋管材的晶粒尺寸分布

Table 6 Grain size distribution of the TC4 cold rolled tubes after annealing at different temperatures

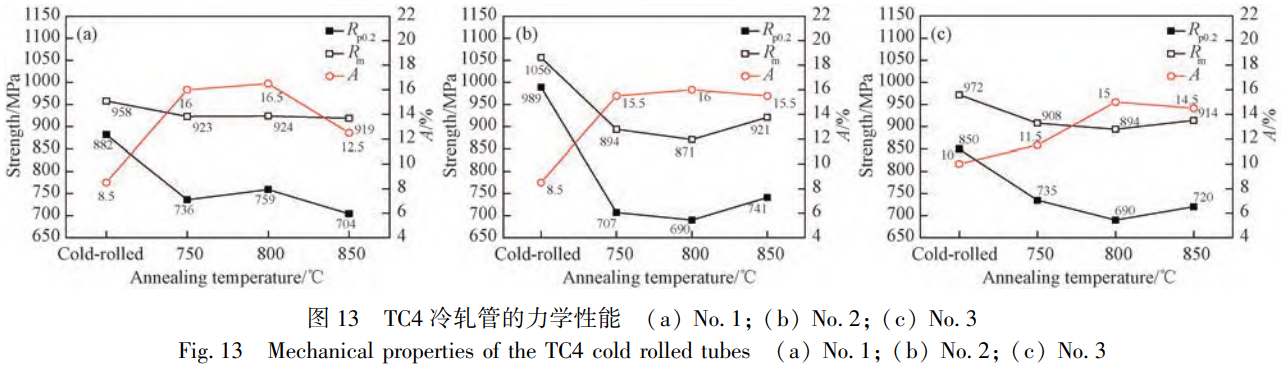

2.4力學性能

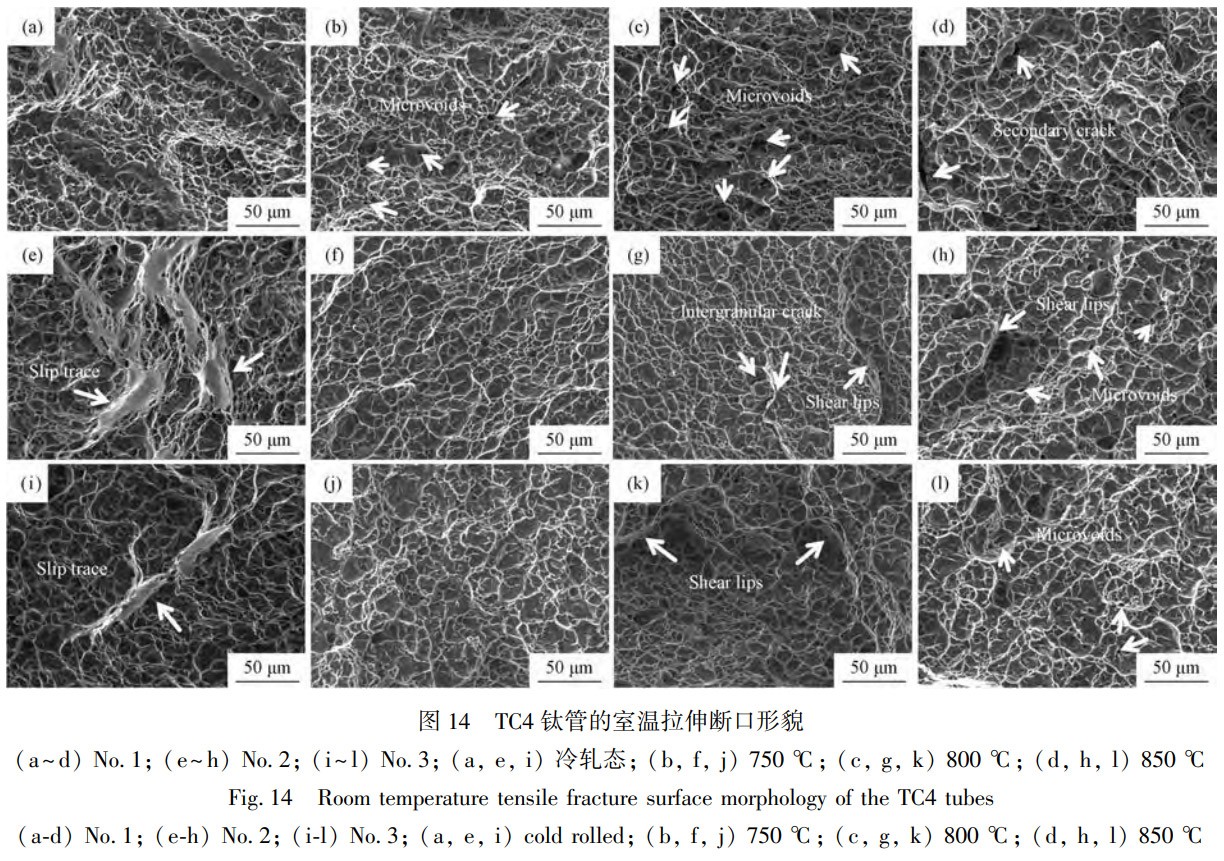

2.5 斷口分析

3、結論

1)冷軋組織取決于道次變形量,小變形時組織中保留大量形態完整的等軸α晶粒;大變形量(44%)促使等軸α晶粒消失,形成纖維狀組織;

2)大變形會促使TC4鈦管中纖維狀α相形成并增強變形織構,而減壁為主的小變形可引發晶粒取向發生傾轉,形成雙峰分裂織構;

3)退火可促進生成基面織構取向的再結晶晶粒,800℃退火可充分釋放TC4大變形試樣的變形儲能,實現完全再結晶,同時顯著降低變形織構強度,提升塑性,850℃退火會略微增加合金管強度并降低伸長率;

4)建議工業生產中采用大變形結合800℃退火,可使TC4鈦合金管材獲得最佳力學性能;若需要更高的強度，則可選擇750℃退火。

參考文獻

[1]董恩濤,余偉,米永峰,等.TC4鈦合金熱軋無縫管組織性能分析與控制[J].包鋼科技,2019,45(4):4-9.

DONG En-tao,YU Wei,MI Yong-feng,et al. Analysis and control for microstructure and properties of TC4 titanium alloy hot-rolled seamless tube[J].Science and Technology of Baotou Steel,2019,45(4):4-9.

[2]張鵬.TC4鈦合金絲材熱加工過程中組織演化及再結晶行為研究[D].西安:西安建筑科技大學,2024.

ZHANG Peng. The study of microstructure evolution and recrystallization behavior during the hot working process of TC4 titanium alloy wire[D].Xi'an:Xi'an University of Architecture and Technology,2024.

[3]張旻,帥美榮,李海斌,等.熱處理對不同形變工藝鈦合金棒材顯微組織與性能的影響[J].材料熱處理學報,2022,43(3):35-42.

ZHANG Min,SHUAI Mei-rong,LI Hai-bin,et al. Effect of heat treatment on microstructure and properties of titanium alloy bars prepared by different deformation processes[J].Transactions of Materials and Heat Treatment,2022,43(3):35-42.

[4]張永強,馮永琦,李渭清,等.TC4合金管材擠壓成型工藝研究[J].稀有金屬快報,2006,25(10):27-29.

ZHANG Yong-qiang,FENG Yong-qi,LI Weiqing,et al. Study of extrusion process for TC4 tube[J].Rare Metals Newsletter,2006,25(10):27-29.

[5]向柳.不同工藝下TC4管材組織與性能規律研究[D].沈陽:東北大學,2021.

XIANG Liu. Study on the rule of structures and properties of TC4 tube under different processes[ D]. Shenyang: Northeastern University,2021.

[6]肖雅靜，徐先澤，張樹啟，等.斜軋穿孔法制備TC4合金管坯[J].稀有金屬快報，2008,27(1):29-32.

XIAO Ya-jing,XU Xian-ze,ZHANG Shu-qi,et al.TC4 Titanium alloy seamless blooms made by rotary piercing[J].Rare Metals Newsletter,2008,27(1):29-32.

[7]謝林均,鳳偉中,代春,等.鈦合金加工中TC4無縫管材工藝研究[J].世界有色金屬,2022(13):1-3.

XIE Lin-jun,FENG Wei-zhong,DAI Chun,et al. Study on TC4 seamless pipe process in titanium alloy processing[J].World Non-Ferrous Metals,2022(13):1-3.

[8]李凱玥.TC4鈦合金薄壁管材冷軋工藝及組織性能研究[D].鎮江:江蘇科技大學,2012.

LI Kai-yue. Investigation on cold rolling process,microstructure and properties of TC4 alloy thin thickness tubes[D].Zhenjiang:Jiangsu University of Science and Technology,2012.

[9]王國迪,景然,張曼雪,等.冷軋變形量及再結晶對TC4合金組織與性能的影響[J].金屬熱處理,2022,47(3):48-52.

WANG Guo-di,JING Ran,ZHANG Man-xue,et al. Effects of cold rolling deformation and recrystallization on microstructure and properties of TC4 alloy[J].Heat Treatment of Metals,2022,47(3):48-52.

[10] Zhu W. The effect of crystallographic orientation on globularization and texture evolution during the annealing of a near a titanium alloy tube[J].Materials Today Communications,2024,39:109080.

[11]韓盈,余偉,董恩濤,等.軋制工藝對TC4合金板材織構演變及組織和性能的影響[J].稀有金屬材料與工程,2021,50(10):3585-3590.

HAN Ying,YU Wei,DONG En-tao,et al. Effect of rolling process on texture evolution,microstructure and mechanical properties of TC4 alloy plate[J].Rare Metal Materials and Engineering,2021,50(10):3585-3590.

[12]He C X,Zhang Z X,Wang B L,et al.Twinning behavior and texture evolution of pure titanium during corrugated-flat rolling under wide temperature range[J].Journal of Alloys and Compounds,2025,1024:180198.

[13]Wu X P,Kalidinidi S R,Necker C,et al. Prediction of crystallographic texture evolution and anisotropic stress-strain curves during large plastic strains in high purity a-titanium using a Taylor-type crystal plasticity model[J]. Acta Materialia,2007,55(2):423-432.

[14]Wang B,Xiang Z L,Zhou Z Y,et al. Effect of microstructure and texture on mechanical properties of TA1 pure titanium sheets in different rolling processes[J].Materials Today Communications,2025,46:112560.

[15]Tirry W,Coghe F,Bouvier S,et al. A multi-scale characterization of deformation twins in Ti6Al4V sheet material deformed by simple shear[J].Materials Science and Engineering A,2010,527(16):4136-4145.

[16]Wang L,Zheng Z,Phukan H,et al. Direct measurement of critical resolved shear stress of prismatic and basal slip in polycrystalline Ti using high energy X-ray diffraction microscopy[J].Acta Materialia,2017,132:598-610.

[17]Wang J,Hoagland R G,Hirth J P,et al. Nucleation of a(1012) twin in hexagonal close-packed crystals[J].Scripta Materialia,2009,61(9):903-906.

[18]Wang L,Yang Y,Eisenlohr P,et al. Twin nucleation by slip transfer across grain boundaries in commercial purity titanium[J].Metallurgical and Materials Transactions A,2009,41(2):421-430.

[19]Wu J,Wang L,Liu X,et al. Evolution of microstructure and microtexture in Ti-2Al-2.5Zr during one pass cold pilgering[J].Rare Metal Materials and Engineering,2022,51(4):1145-1151.

[20]Deng S Y,Song H W,Zheng C,et al. Selection of deformation modes and related texture evolution in Zircaloy-4 during one pass cold pilgering[ J]. Materials Science and Engineering A,2019,764:138280.

[21] Krishna K V M,Sahoo S K,Samajdar I,et al. Microstructural and textural developments during Zircaloy-4 fuel tube fabrication[J].Journal of Nuclear Materials,2008,383(1/2):78-85.

[22]Wang L,Eisenlohr P,Yang Y,et al. Nucleation of paired twins at grain boundaries in titanium[ J].Scripta Materialia,2010,63(8):827-830.

[23]顏孟奇,張業勤,齊立春,等.TC4鈦合金冷軋無縫管材的制備工藝及織構演變規律研究[J].材料開發與應用,2020,35(5):63-68.

YAN Meng-qi,ZHANG Ye-qin,QI Li-chun,et al. Technology and texture revolution of TC4 alloy cold rolling seamless tube[J].Material Development and Application,2020,35(5):63-68.

[24]魏棟,項豪特,李萌,等.高性能管材冷軋成形微觀織構演變與調控研究進展[J].材料導報,2025,39(12):1-19.

WEI Dong,XIANG Hao-te,LI Meng,et al. Research status on texture evolution and control of high-performance tube in cold pilgering process[J].Materials Reports,2025,39(12):1-19.

[25] Li K, Yang P. Interaction among deformation, recrystallization and phase transformation of TA2 pure titanium during hot compression[J].Transactions of Nonferrous Metals Society of China,2016,26(7):1863-1870.

[26]楊奇,惠松驍,葉文君,等.冷軋TA18鈦合金管材退火織構的形成機制[J].稀有金屬材料與工程,2023,52(3):899-910.YANG Qi,HUI Song-xiao,YE Wen-jun,et al. Formation mechanism of annealing texture of cold rolled TA18 titanium alloy tube[J].Rare Metal Materials and Engineering,2023,52(3):899-910.

[27] Sun T,Yang X,Liu T,et al. Effect of annealing temperature on microstructure and mechanical properties of asymmetrically rolled unalloyed titanium ultra-thin strips[J].Materials Science and Engineering A,2025,924:147773.

[28]陳洪美,臧千昊,張靜,等.冷軋TC4鈦合金管材的織構研究[J].特種鑄造及有色合金,2015,35(10):1012-1015.CHEN Hong-mei,ZANG Qian-hao,ZHANG Jing,et al.Texture of TC4 titanium alloy tubes processed by cold rolling[J].Special Casting and Non-Ferrous Alloys,2015,35(10):1012-1015.

[29] Chen Y T,Wang K,Ren Z,et al. Interaction between phase transformation and static recrystallization during annealing of rolled TC18 titanium alloy[J].Journal of Materials Science& Technology,2024,202:1-15.

[30] Liu N,Wang Y,He W,et al. Microstructure and textural evolution during cold rolling and annealing of commercially pure titanium sheet[J].Transactions of Nonferrous Metals Society of China,2018,28(6):1123-1131.

[31] Wagner F,Bozzolo N,Landuyt O V,et al. Evolution of recrystallisation texture and microstructure in low alloyed titanium sheets[J].Acta Materialia,2002,50:1245-1259.

[32] Bozzolo N,Dewobroto N,Grosdidier T,et al. Texture evolution during grain growth in recrystallized commercially pure titanium[J].Materials Science and Engineering A,2005,397(1/2):346-355.

[33] Dixit S,Dash B B,Kumar D,et al. Influence of phase morphology,static recrystallization,and crystallographic texture on room temperature tensile properties of Ti-6Al-4V alloy:Comparison between post-tested equiaxed,bimodal,and lamellar microstructures[J].Materials Science and Engineering A,2023,873:144990.

[34]王慶娟,杜旭東,蔣立,等.退火處理對TC4鈦合金航空發動機葉片組織與性能的影響[J].材料熱處理學報,2023,44(8):1-9.

WANG Qing-juan,DU Xu-dong,JIANG Li,et al. Effect of annealing treatment on microstructure and properties of TC4 titanium alloy aero-engine blades[J].Transactions of Materials and Heat Treatment,2023,44(8):1-9.
